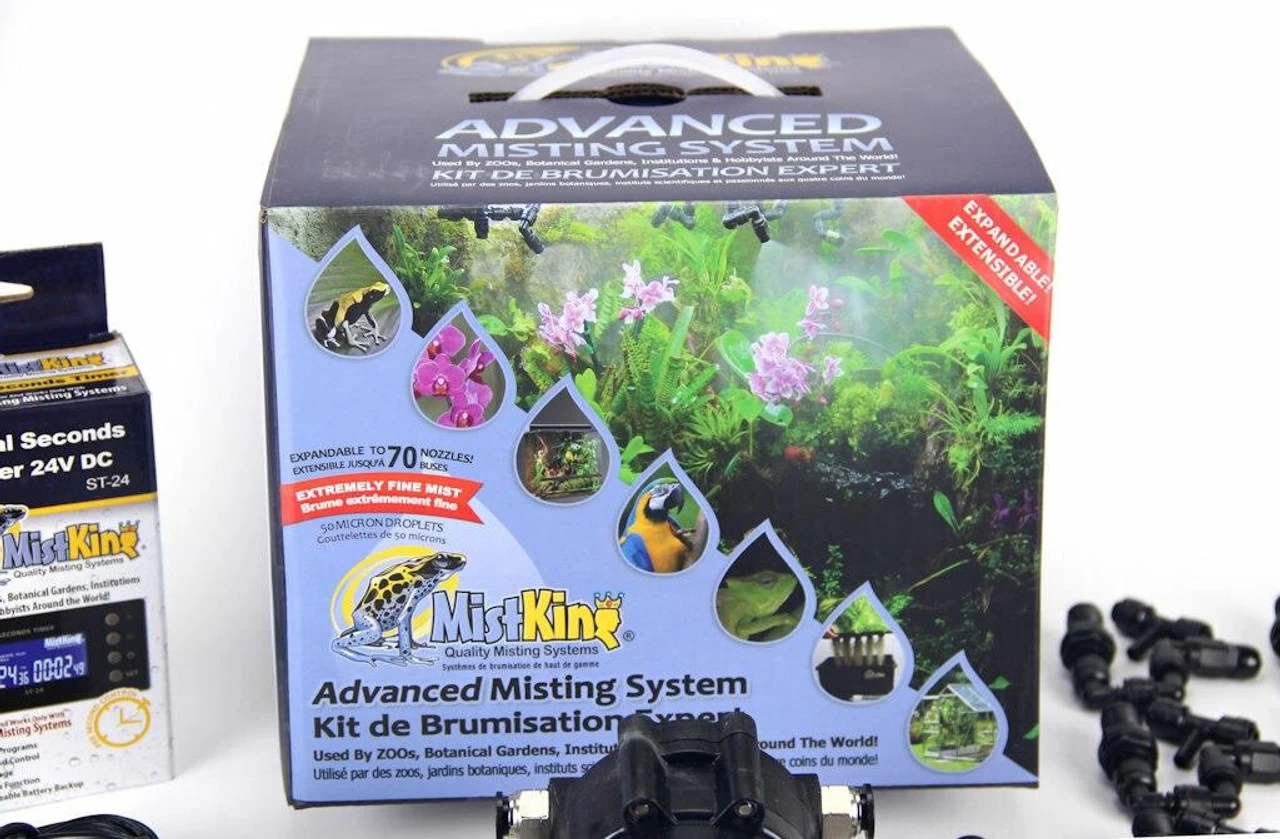

(SHIPS FREE*) MistKing V5.0 Advanced Misting System (3/8″ Backbone)

Advaned Misting System – 5th generation

This is the latest 5th generation Advanced Misting System. Created based on most often ordered parts and feedback from our customers

Each version sold before had some major improvements that made it better than the previous. This time we tackled the improvement of the timers and addition of few crucial parts.

In previous version we have created 3 completely custom timers suitable for various applications.  You can pick and customize your system and control it exactly as you need it. Select the timer you want in your system. To learn more about how each timer works, please visit the timer page.

Items included with the Advanced Misting System. All items can be customized by selecting from the right.

MistKing is always improving.  Over the years we’ve spotted a bit of room for improvement over our previous version.  In version 5 these are:

• Improved timer electronics. Timers now have a 3 times higher electronics rating which better equips the timers for dealing with power outages and high inductive demand of MistKing pumps.  This should improve system failure rates and add to MistKing reliability.

• Reservoir Bulkhead has been custom designed from ground up and is exclusive to MistKing. With its dense metal thread you can now tighten with all required force without worry of stripping.  We have even tested the bulkheads to squeeze a bucket without an o-ring and achieved perfect seal.  Nevertheless use an o-ring for added security.

• We now also include a small reservoir filter. No need to worry that a floating debris will be sucked into the system and clog your nozzle. We love color black in our systems, however the filter is white to easier spot when it needs to be rinsed.

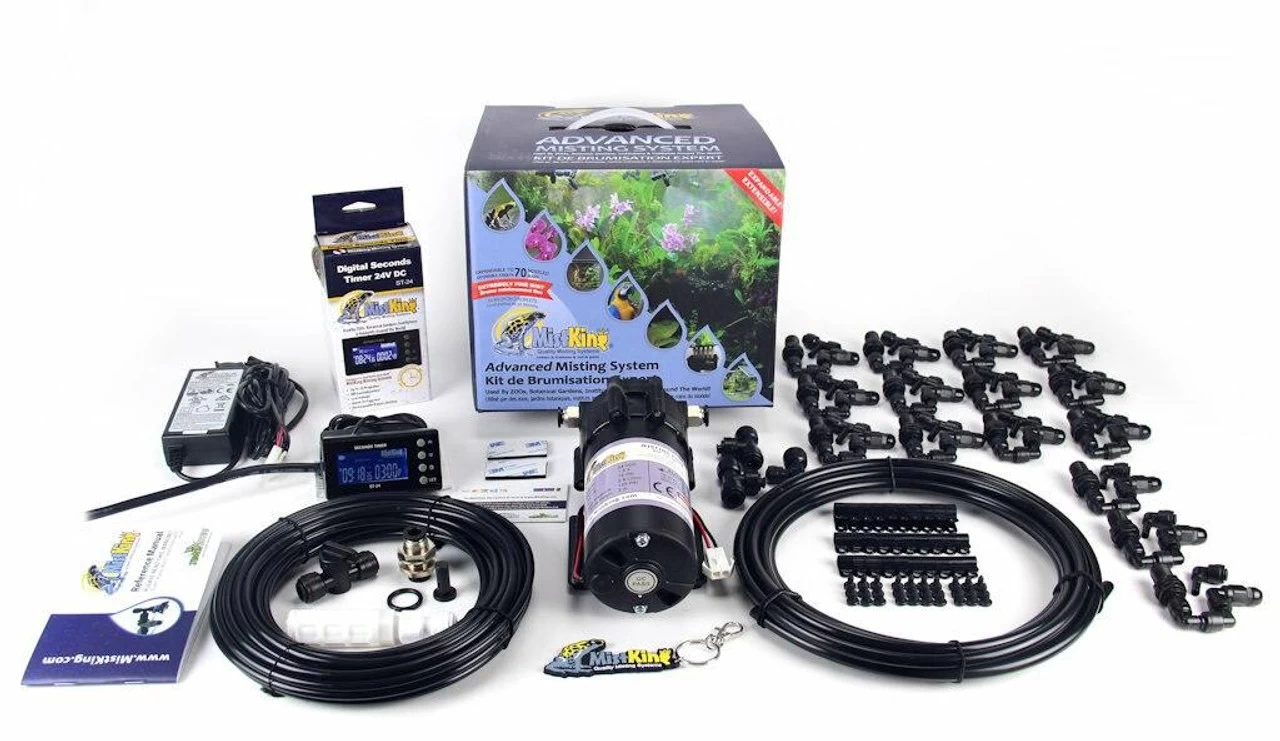

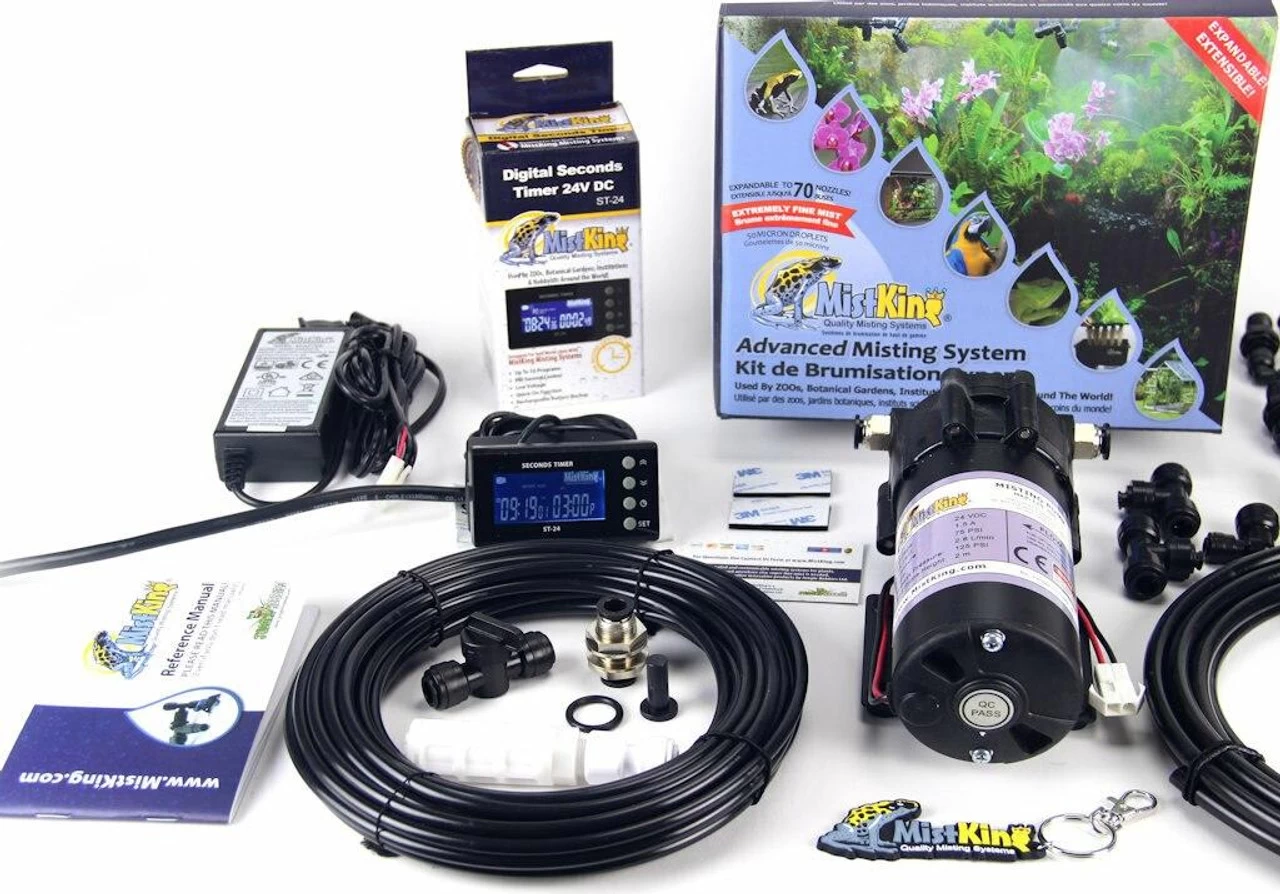

This Advanced Misting System v5.0 includes

Advanced Misting System with a 3/8″ Backbone is a significantly more powerful system than the starter or ultimate. Unless you’re going to exceed 15-20 nozzles, we do not recommend upgrading to this misting system. Features a pump capable of pressures up to 125psi. Supports from 10 to 70+ nozzles of your choice. Actual number of nozzles depends on the complexity of the system. Pump can run continuously for hours at a time, EVEN DRY! These pumps are manufactured specifically for MistKing and are very robust.
This is the 4th generation mistking system which includes the new seconds timer. If your need calls for a different timer, be sure to select it from the options on the right. To learn more about how each works visit the timer page

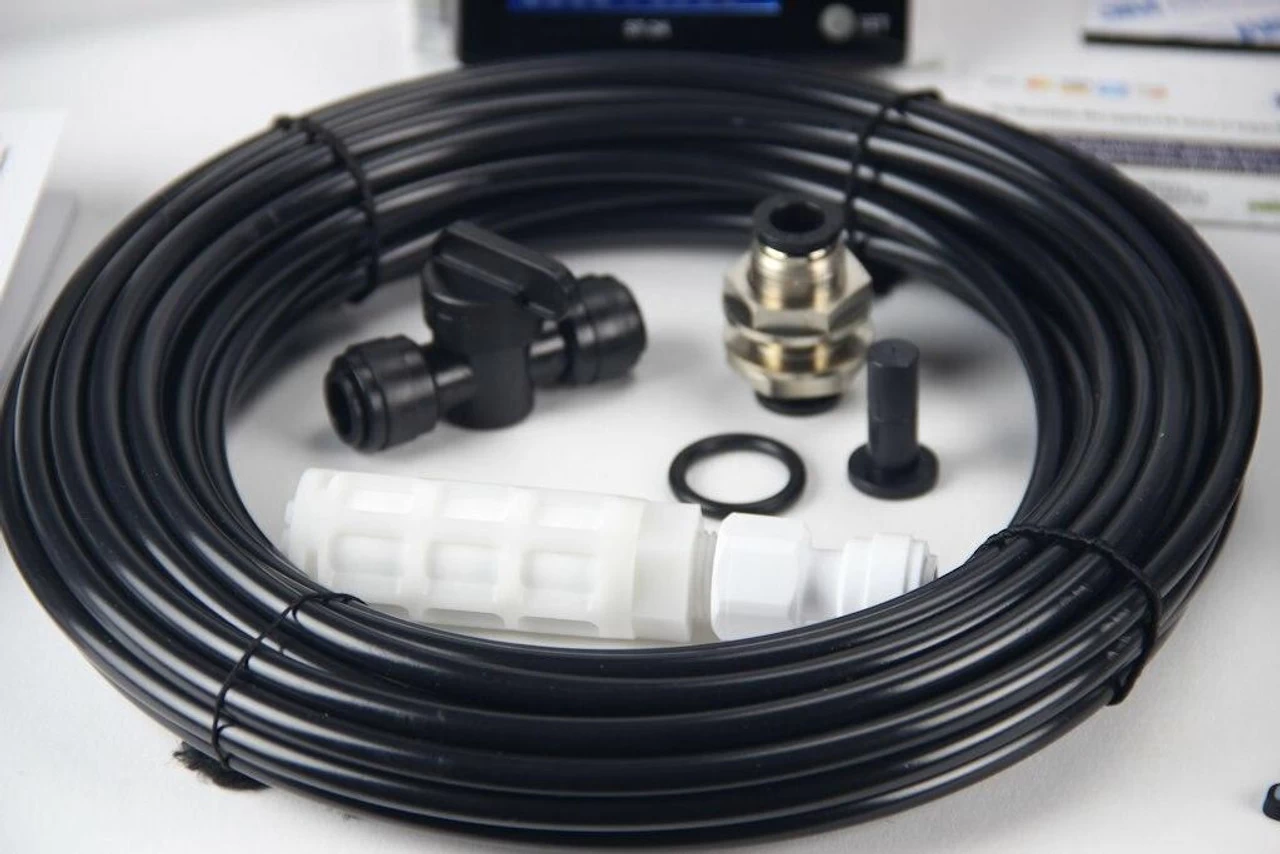

• Large capacity diaphragm pump with 3/8″ fittings.

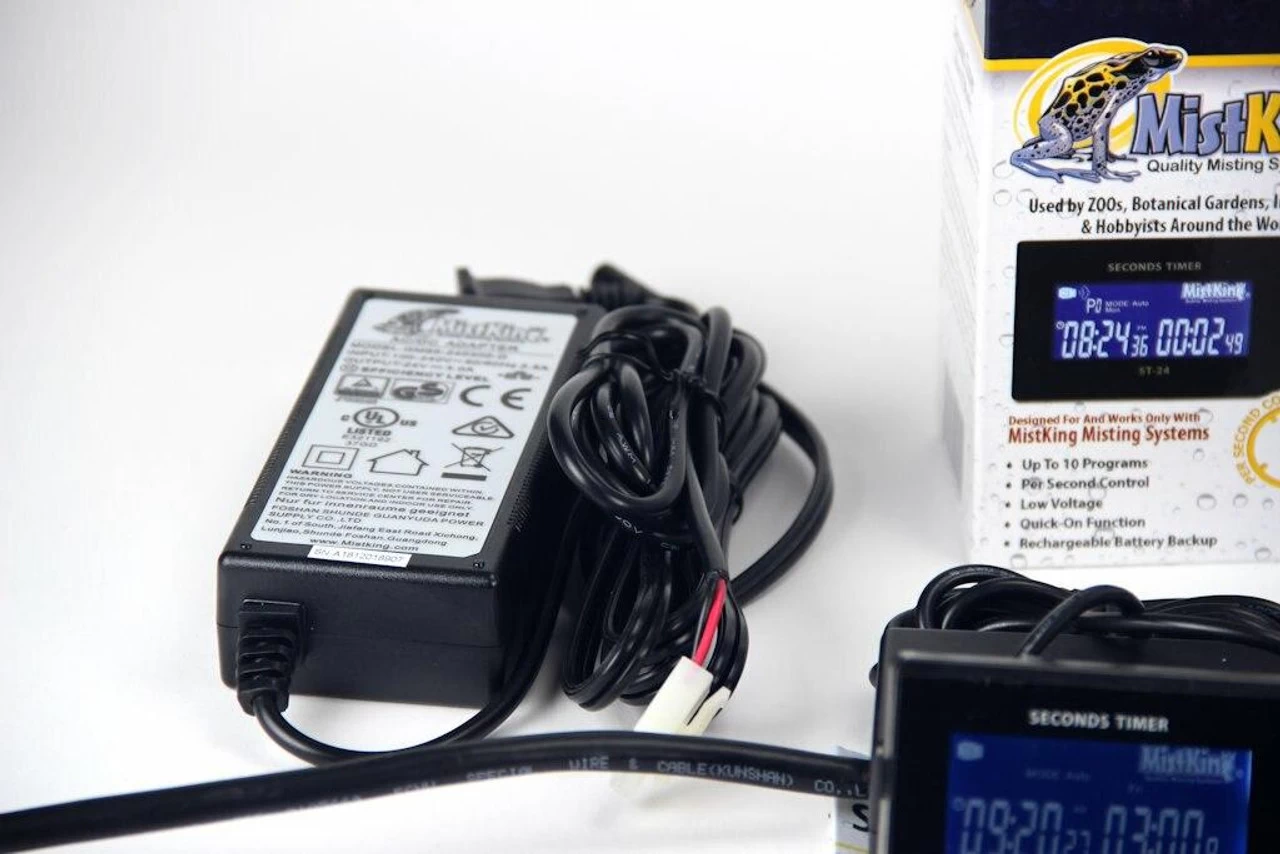

• 24V Power adapter – 110V (CE and cUL listed)
• 3/8″ metal reservoir bulkhead with plug
• 3/8″ Ball Valve
• 35 feet of 1/4″ black opaque tubing (to connect nozzles)
• 15 feet of 3/8″ black opaque tubing (to connect reservoir to pump and run nozzle 3/8″ backbone)

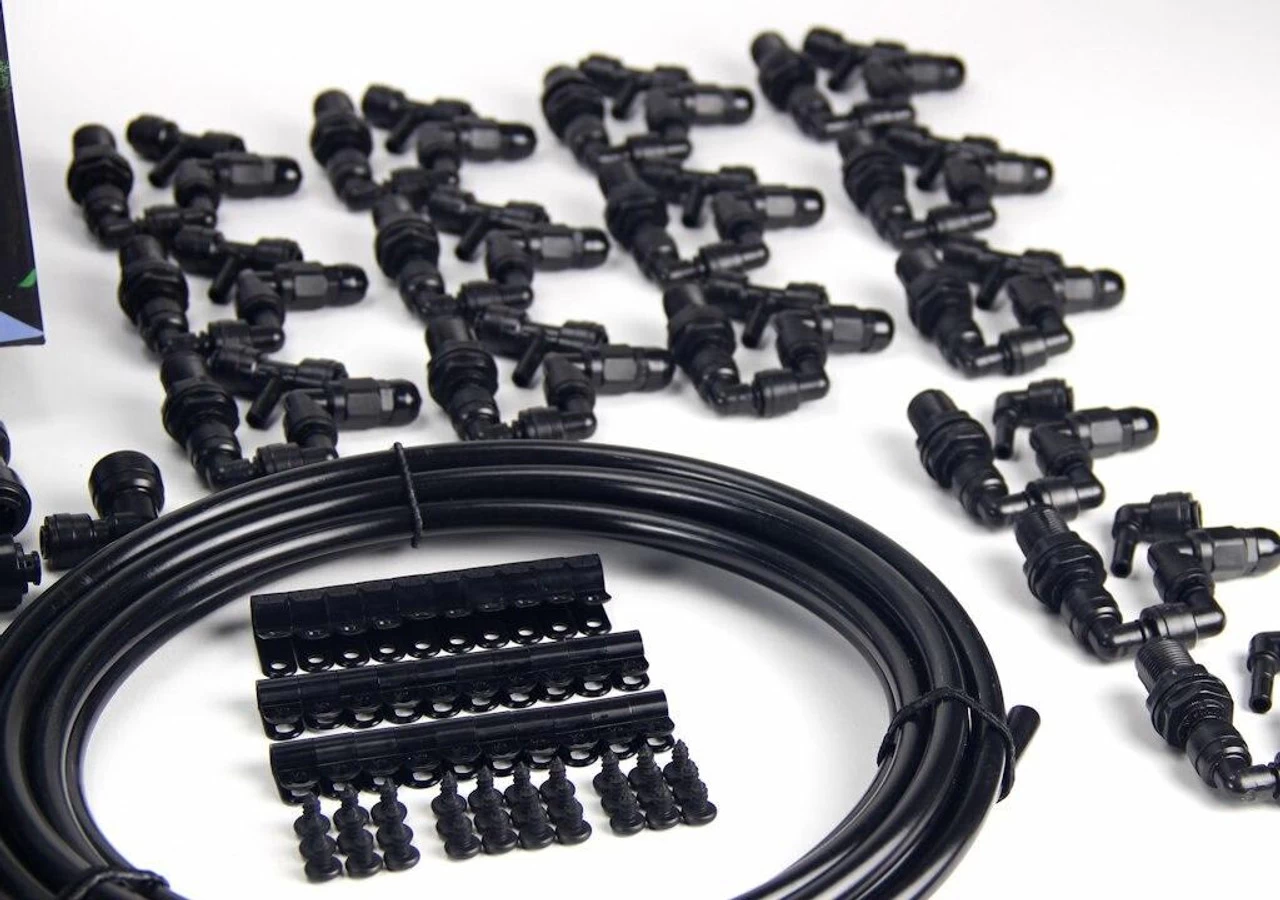

• 12 Value “T” Misting Assemblies
• 3 Value “L” Misting Assemblies

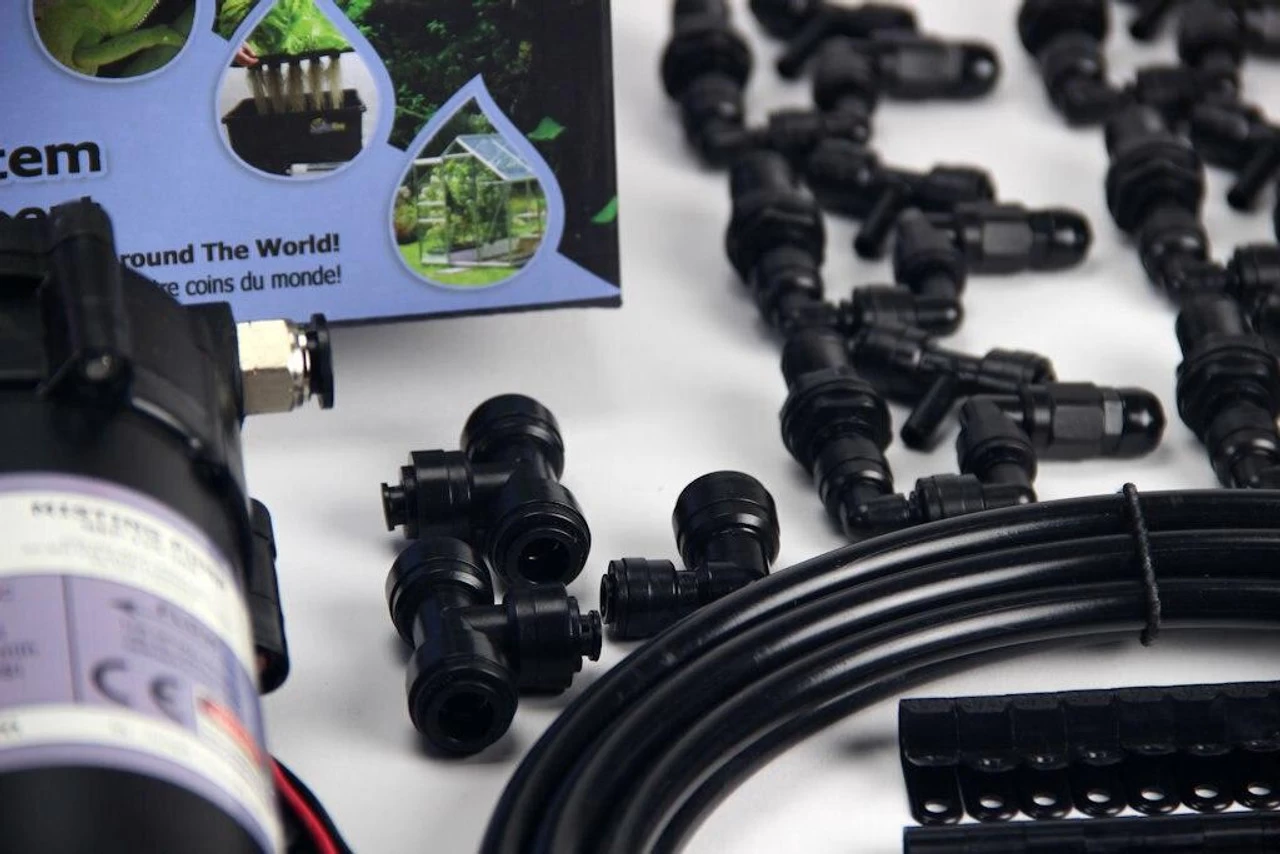

• 2 Reducing Tee Connections (3/8″ to 1/4″)
• 1 Reducing Elbow Connections (3/8″ to 1/4″)

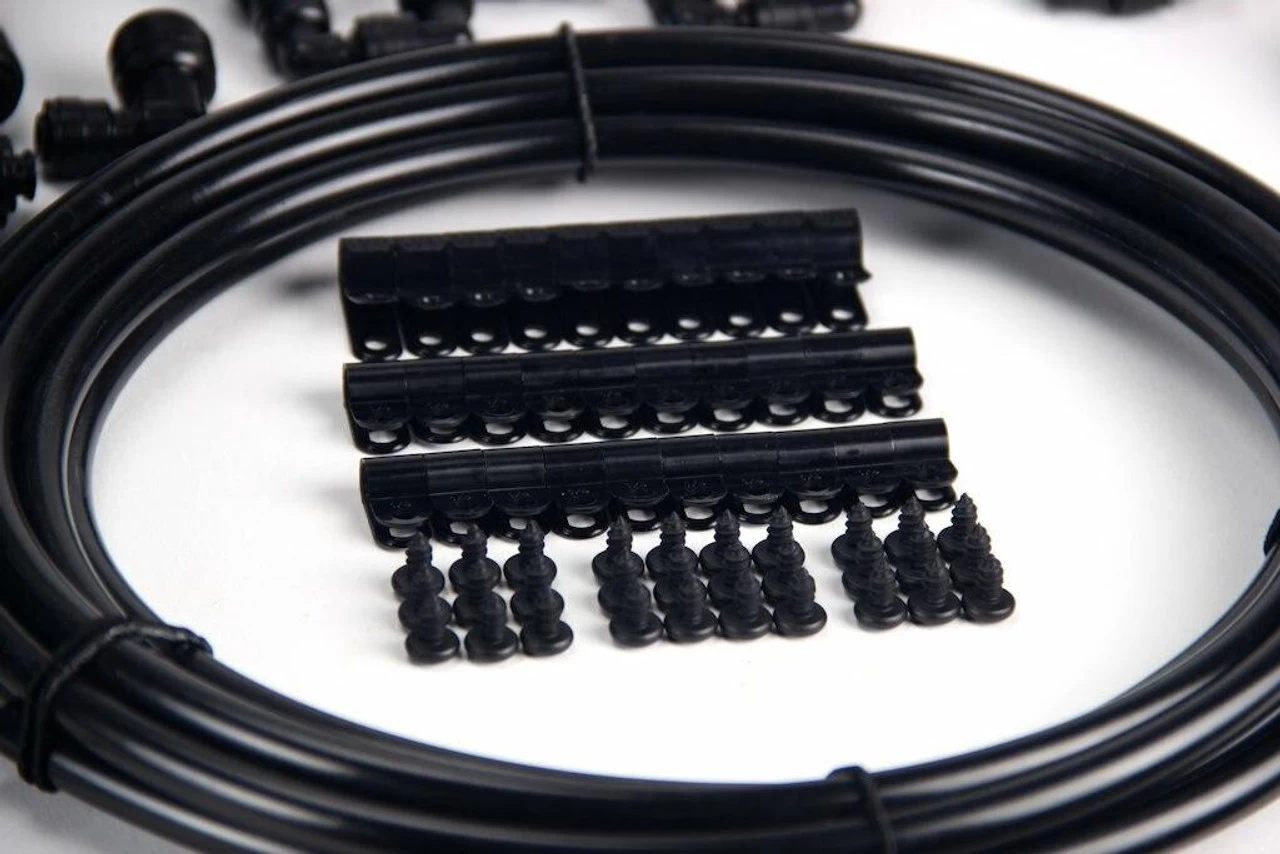

• 20 1/4″ Tubing Clips
• 10 3/8″ Tubing Clips

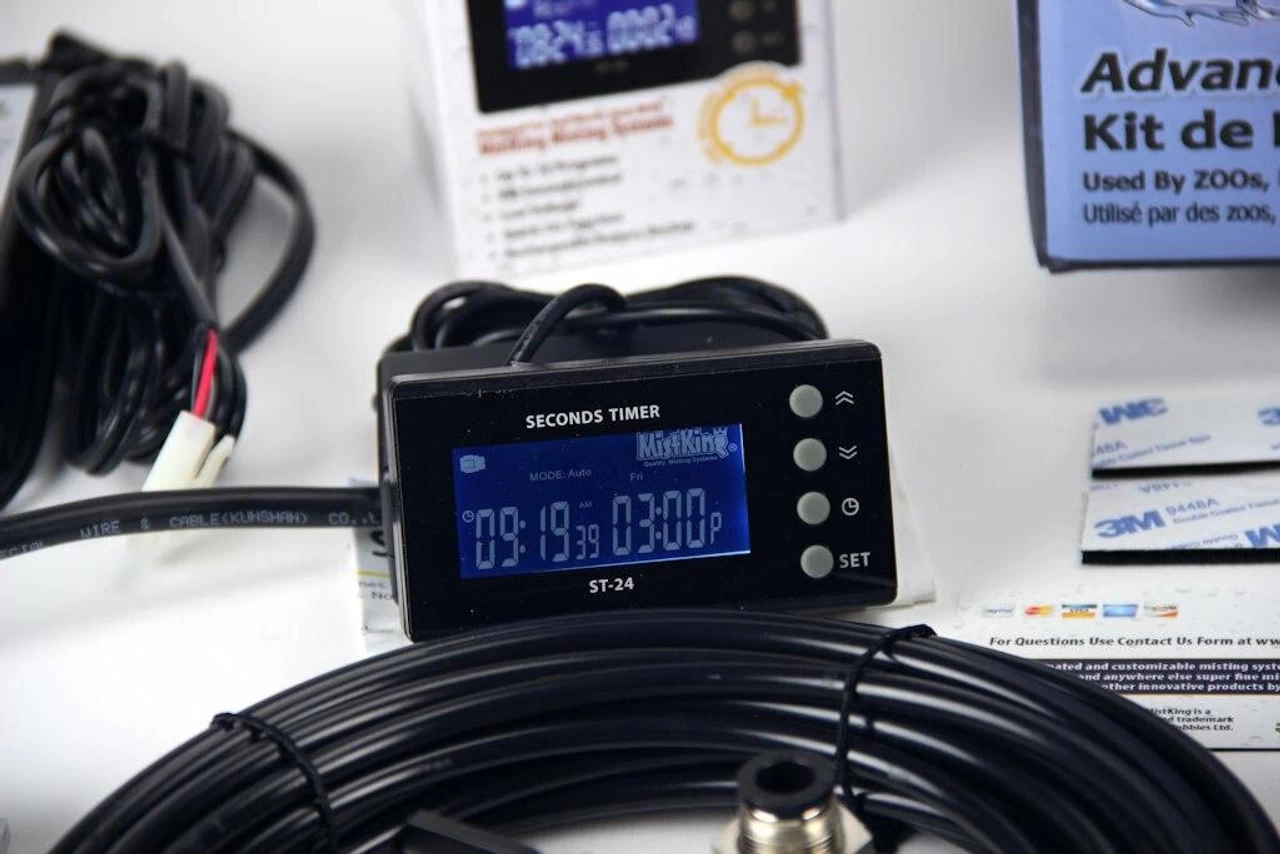

• Upgraded Seconds timer ST-24
• 3/8″ Reservoir filter
• Installation instructions

This kit can be used as is, just get a suitable size reservoir. If you intend to use more nozzles, we recommend extending the 3/8″ tubing backbone and adding some extra Reducing Tee (link) connections and then splitting into 1/4″ lines that will feed the individual misting assemblies. Alternatively you can use a 7 port manifold fed by 3/8″ tubing or a combination of both.

We suggest using this kit as the backbone for a custom misting system. Just add parts, nozzles, tubing and expand on this work horse. If you need help designing a system that will fit your particular situation, please contact us. Hobbyists and ZOOs run their entire animal rooms based on this kit or multiple kit.
